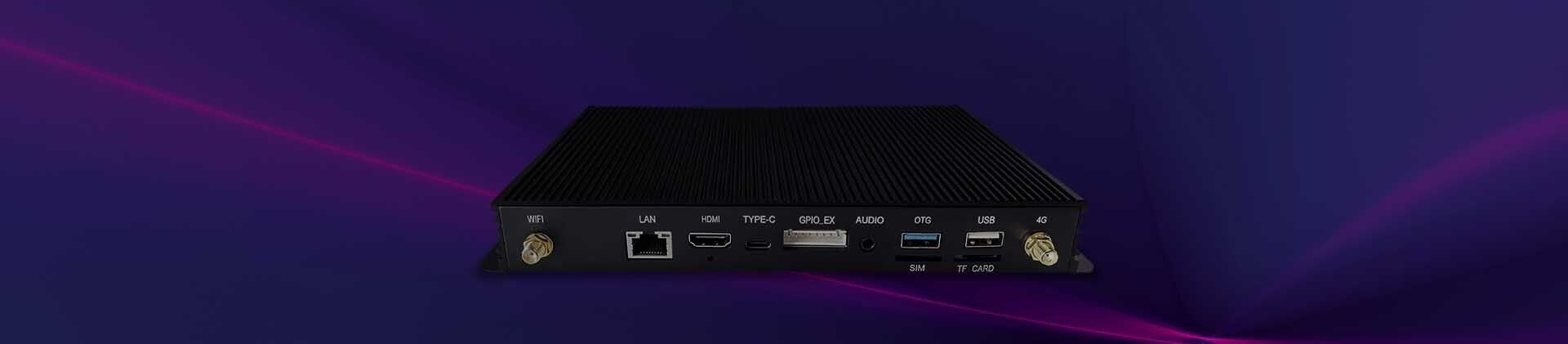

Android Box FA RK-3288W
4K顯示，超高清視覺享受
支持一路HDMI 2.0顯示輸出
最大支持4K 60Hz
支持H.265和4K分辨率解碼Rockchip RK3288
Rockchip RK3288
Quad-core Cortex-A17 up to 1.8GHz
Mali-T764 GPU
Dual-channel DDR3/DDR3L/LPD- DR2/LPDDR3
4K UHD H265/H264
BT.2020/BT.709
H264 encoder
TS in/CSA 2.0
USB 2.0
HDMI 2.0 with HDCP 2.2 MIPI/eDP/LVDS/RGMII
| Digital Signage Android Mainboard Specification |
|---|
| Suport Output Resolution : 5760 x 2160 @ 60fps |
| Configuration |
| • Mainboard Model : Rockchip RK3288 |
| • Operating system : Android 5.1 |
| • CPU : ARM Cortex A17，Main frequency 1.8GHz |
| • GPU : ARM Mail-764 |
| • Internal Memory : Standard configuration 2GB DDR3 |
| • Storage : Standard configuration 8GB EMMC 5.0 |
| Network |
| • LAN : ×1，100M/1000M |
| • Wifi : ×1，802.11bgn |
| Interfaces |
| • Power : ×1，DC 12V |
| • Video Input : Optional) |
| • Video Output : VGA×1，HDMI×1 |
| • Audio Output : 3.5MM |
| • USB : USB×5 |
| • Infrared : ×2, IR、IR_EX |
| • Function Expansion : RS232 |
| • TF : ×1 |
| • SIM : ×1 |
| Electrical Characteristics |
| • Input Power : DC 12V |
| • Work : 0°C~40°C |
| • Srorage Temperature : -40°C-70°C |
| • Dimensions : 227.1mm x 129.5mm x 31.5mm |
